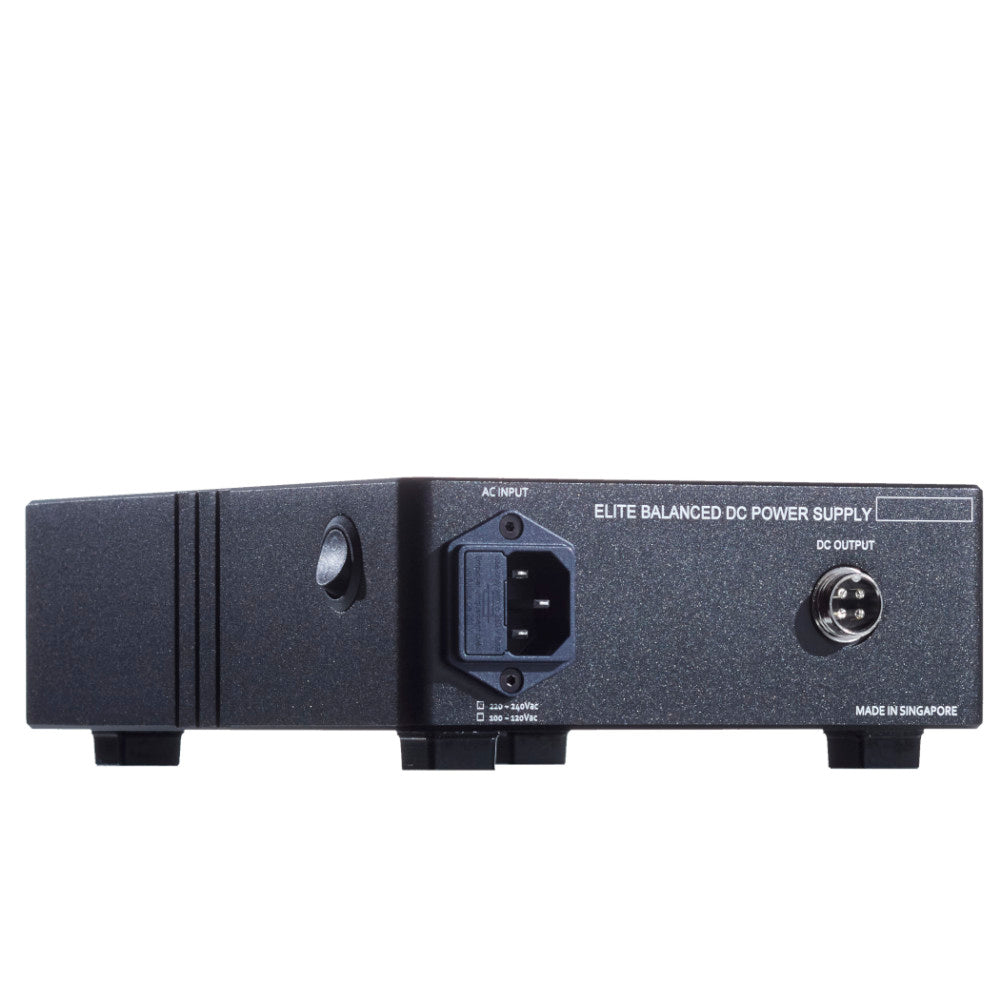

Elite BDC 2A / 4A / 6A

Our PLiXiR Elite BDC balanced DC power supply is designed to reduce all the noise types present in a DC power supply. Upon deep studies it is apparent that traditional DC power supply circuit cannot eliminate them all. These include Ground loop current and diode rectification/pollution noise.

Our ground-up approach begins with a balanced AC power design, along with a two-stage voltage regulation consisting of an open-loop first-stage pre-regulator and a close-loop feedback second stage.

Our unique balanced AC power circuit effectively removes ground loop noise and reduces the diode noise.

The first stage pre-regulation filters the bulk of the noise, specifically the high-frequency noise, and the heat from the second stage voltage regulator. The 2 stages regulation design as a "gate" to prevent the downstream noise from crossing back to the AC power hands.

Other Features

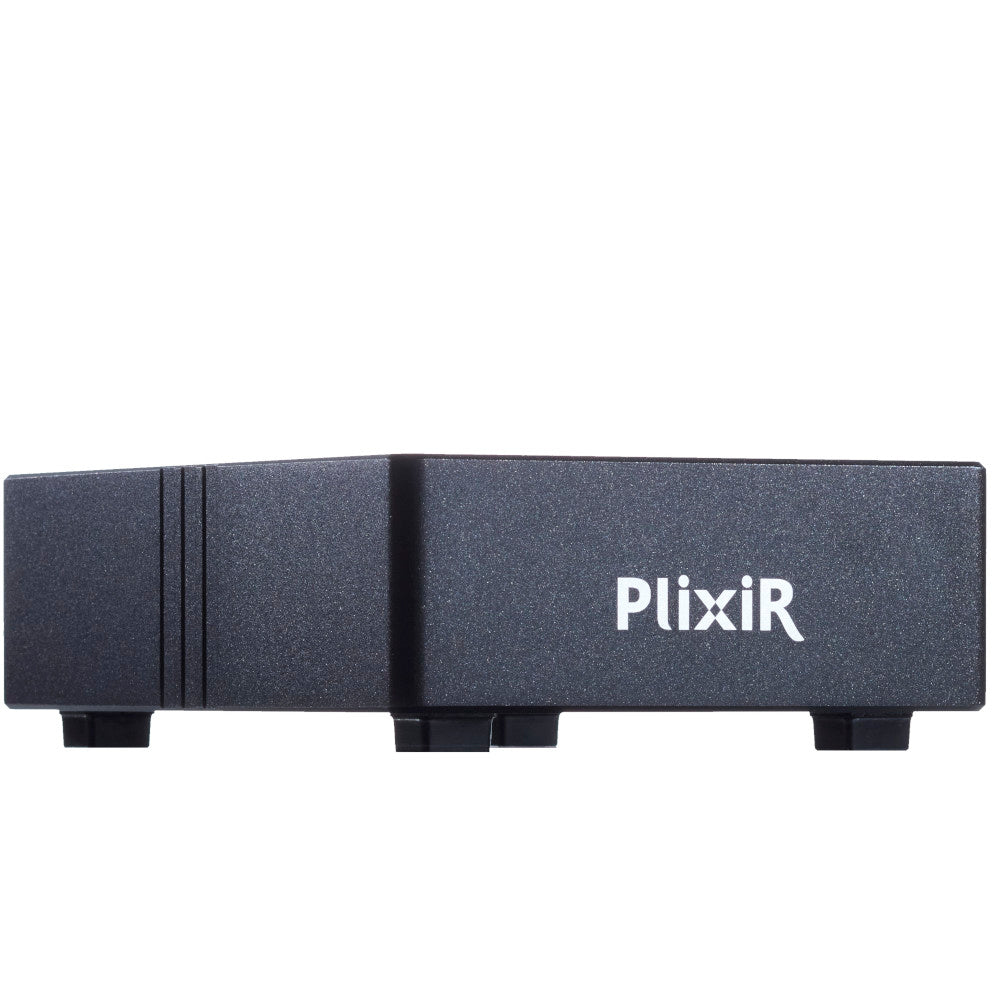

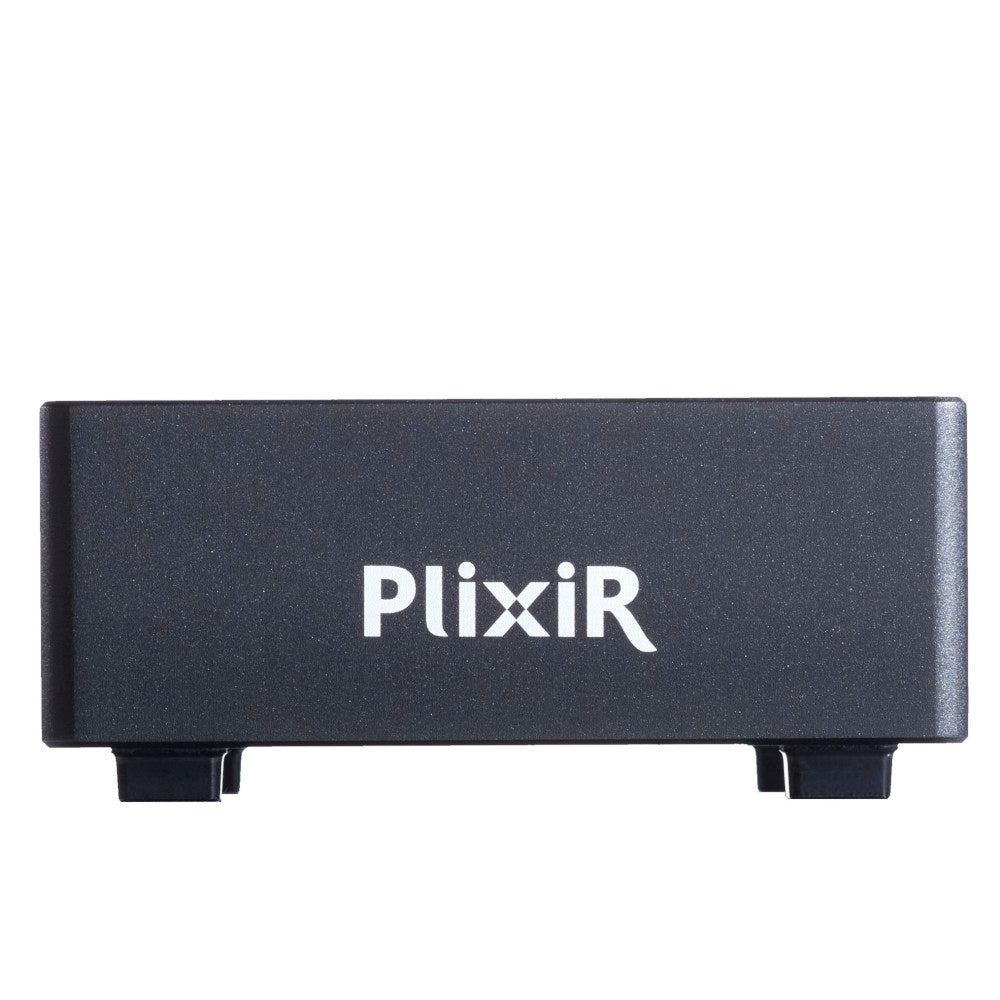

CasingExtruded, 5mm-thick aluminium casing body. Thick metal top and bottom plates provide an ultra-rigid casing that guards against the sound-degrading effects of mechanical vibrations and protects the transformer from external damage.

Premium ComponentsSelected premium components including ultra-low-impedance capacitors, high-current connectors and high-purity copper cables.

Specifications

Output

Less than 1mVrms residual noise at DC ouput. Output Current available in 2/4/6 Amps current continuous.

Output voltage

Output voltage available from 5 Vdc to 30 Vdc. Available in: 110 Vac or 230 Vac input voltage

Casing Finish

Black anodized, sandblasted aluminum

Weight

3.0kg (2A), 3.7kg (4A), 4.7kg (6A)

Dimensions (in mm)

230 x 160 x 70

Comes with

Includes one-meter-long PLiXiR High Current DC Power Cable with a choice of 1.3mm, 1.7mm, 2.1mm or 2.5mm DC plugs to mate with your equipment.

Elite BDC 2A / 4A / 6A

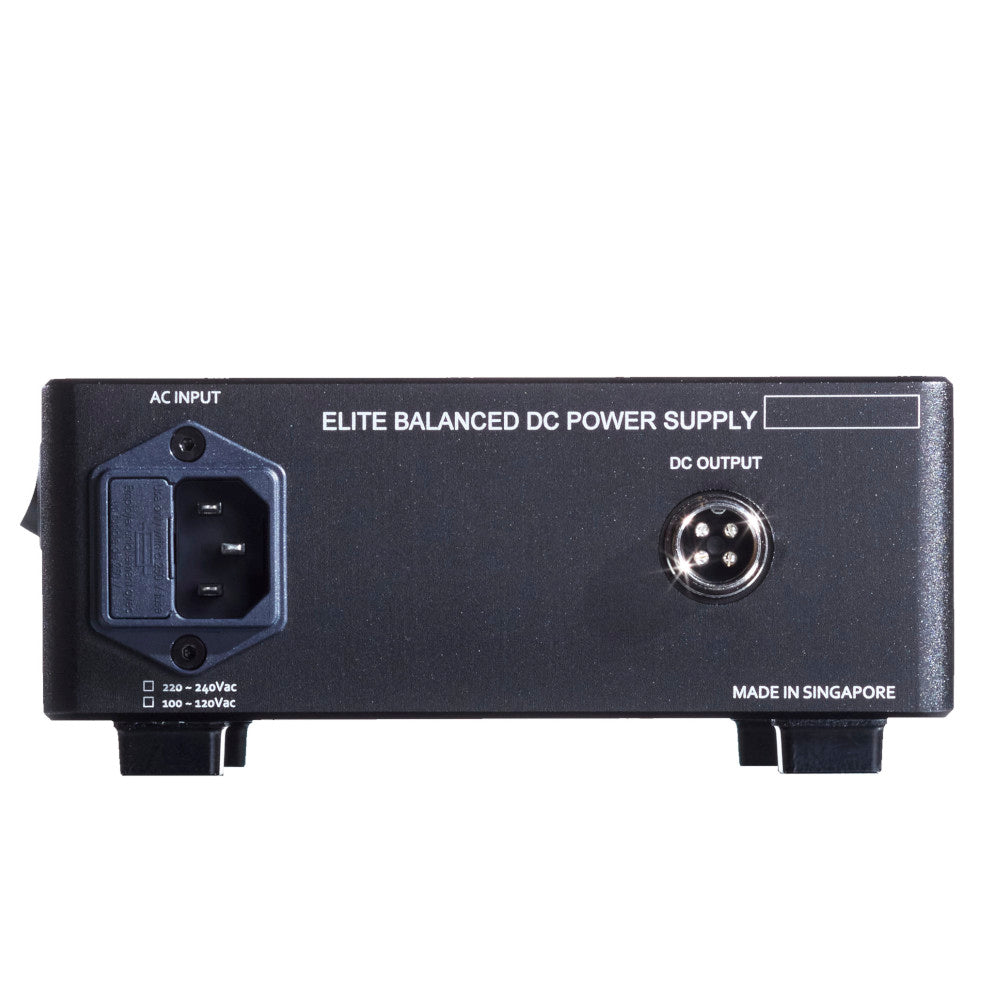

AC Input

DC

Current/DC Plug

Quantity

$800.00 (W/out GST)

$800.00 (With GST)
